台风结构与强度以及环境场对西北太平洋台风尺度估计的影响研究

李好雨, 储可宽

The impact of typhoon structure, intensity, and environmental factors on the estimation of typhoon size in the Northwest Pacific

Haoyu Li, Kekuan Chu

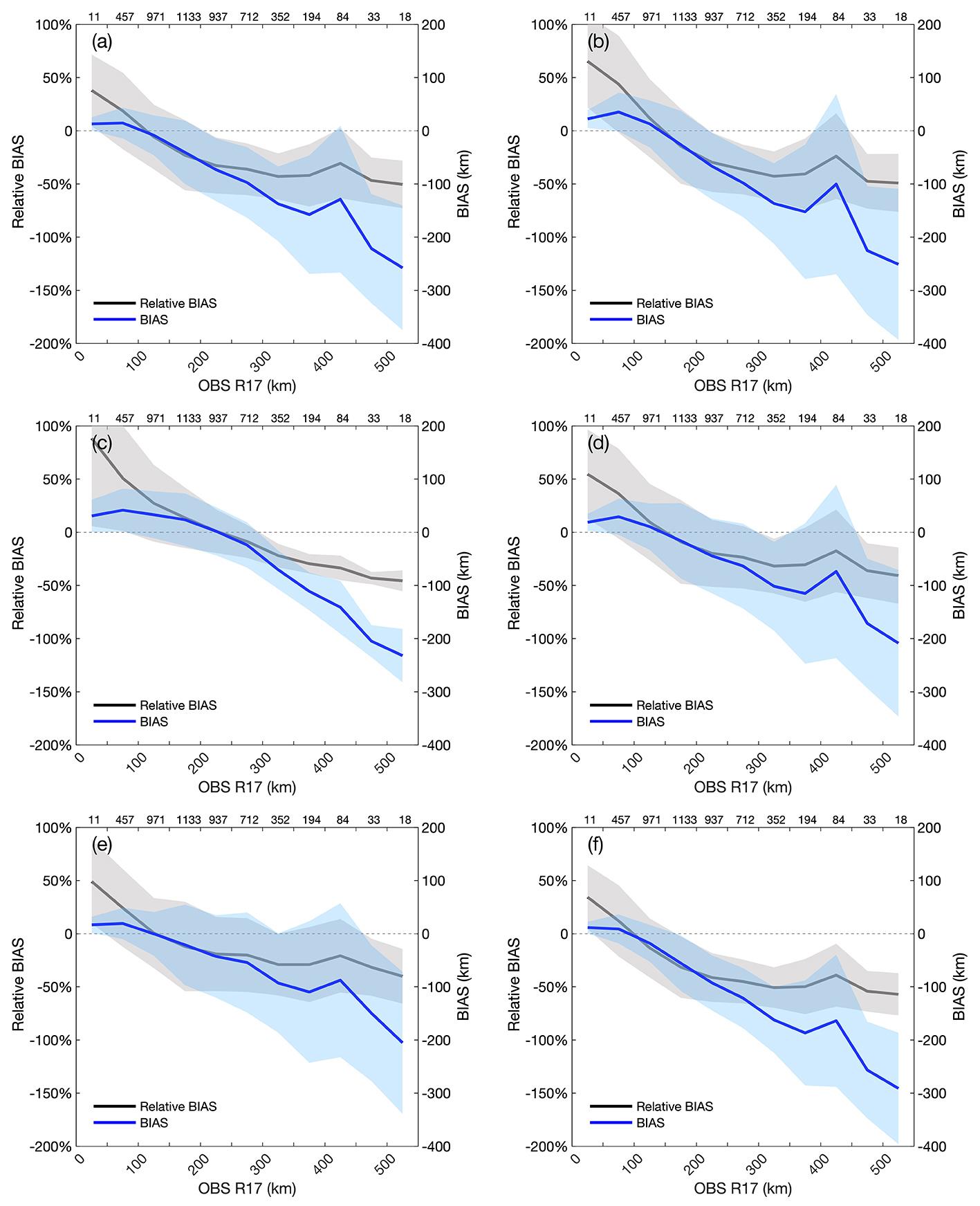

图4 风场模型对R17预估的偏差及相对偏差随R17的变化：(a) H80, (b) D87, (c) W06, (d) F13, (e) C15, (f) W16 The solid blue and black lines represent BIAS and Relative BIAS respectively. Blue and gray shaded areas represent the distribution of standard deviations for Bias and Relative Bias. The gray dashed line indicates the position of zero value， and the top row of numbers represents the sample for each group. (a) H80, (b) D87, (c) W06, (d) F13, (e) C15, (f) W16

Fig.4 Variations in BIAS and Relative BIAS of R17 estimation by all wind field models with changes in R17 for:
