附加薄膜⁃质量块谐振器的Herschel⁃Quincke管及基于该结构的隔声帘的研究

张轶, 范理

Research on a Herschel⁃Quincke pipe with membrane⁃mass resonators attached and a sound insulation curtain based on the structure

Yi Zhang, Li Fan

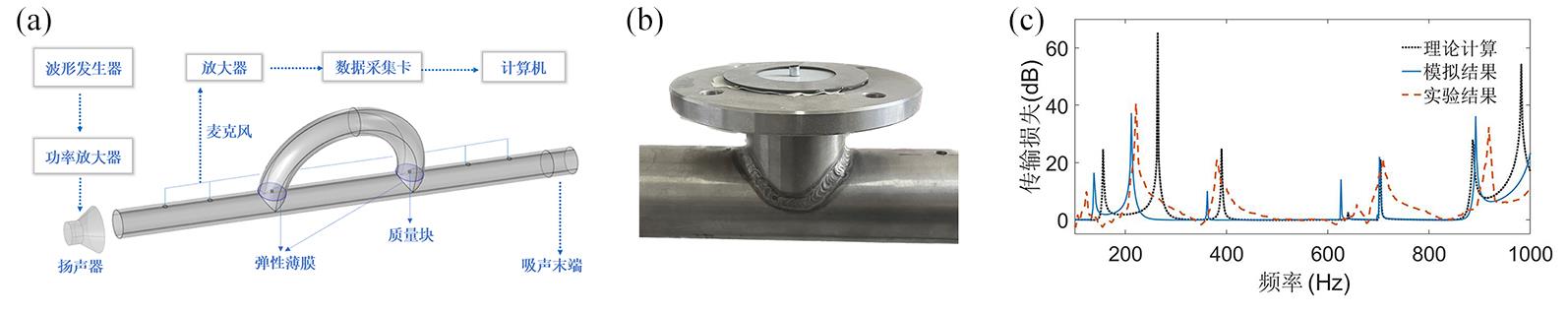

图4 （a）实验系统示意图；（b）附加质量薄膜实验图；（c）模拟结果和实验结果对比 (c) comparison of transmission loss between simulation and experimental results

Fig.4 (a) Schematic illustration of the experimental setup，(b) figure of membrane with mass attached，
