基于反卷积算法的超声图像优化方法

王岳宁, 郭成雯, 王育昕, 袁杰, 程茜

Ultrasound image optimization method based on deconvolution algorithm

Yuening Wang, Chengwen Guo, Yuxin Wang, Jie Yuan, Qian Cheng

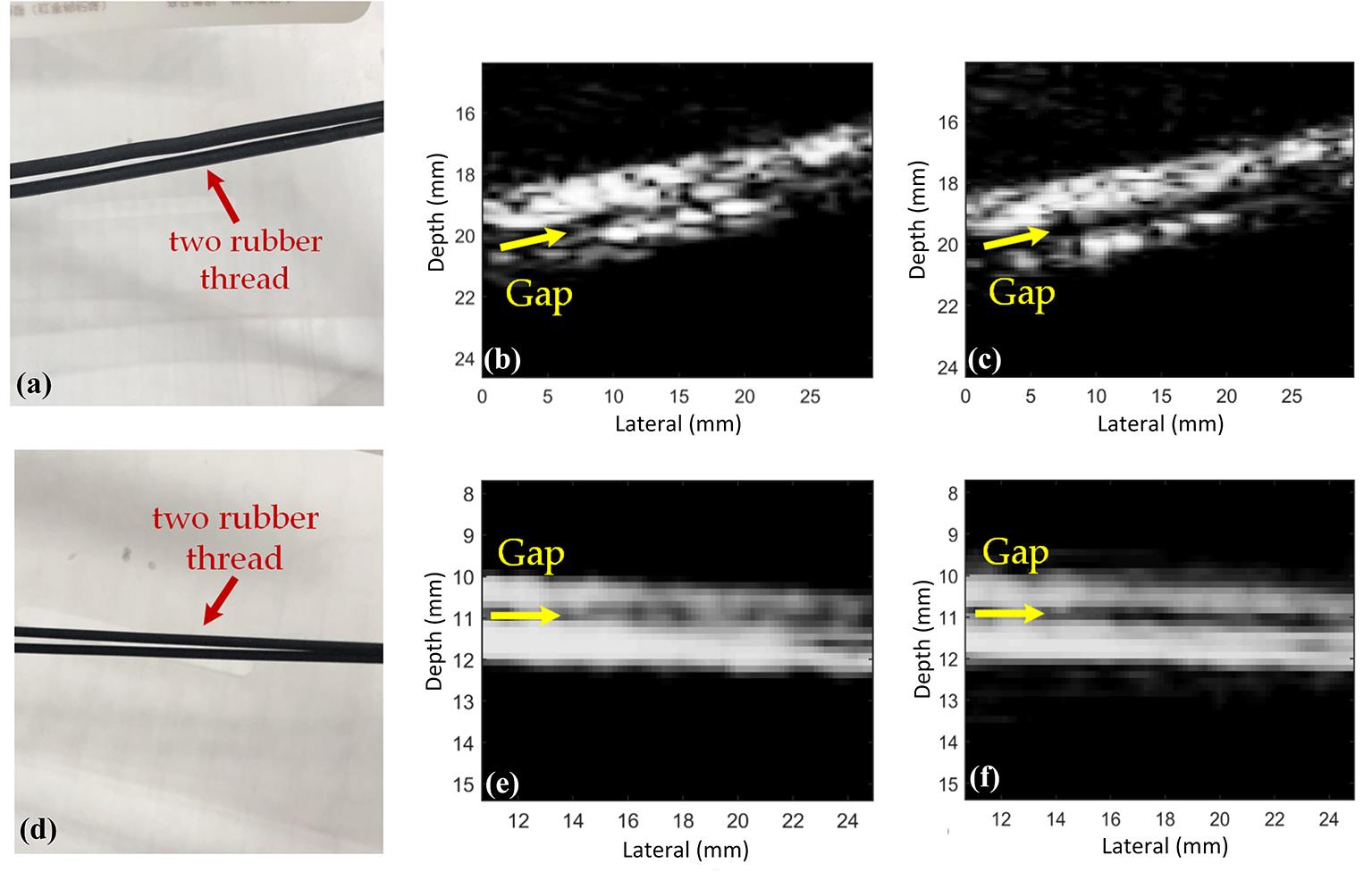

图5 (a) L7?4探头成像目标实拍图；(b) L7?4探头原始信号重建的图像；(c) L7?4探头反卷积后的信号重建的图像；

Fig.5 (a) Real image of imaging target with L7?4 probe,(b) reconstructed image of original signals with L7?4 probe,(c) reconstructed image of deconvolution signals with L7?4 probe,(d) real image of imaging target with CL15?7 probe,(e) reconstructed image of original signals with CL15?7 probe,(f) reconstructed image of deconvolution signals with CL15?7 probe (d) CL15?7探头成像目标实拍图；(e) CL15?7探头原始信号重建的图像；(f) CL15?7探头反卷积后的信号重建的图像
