基于反卷积算法的超声图像优化方法

王岳宁, 郭成雯, 王育昕, 袁杰, 程茜

Ultrasound image optimization method based on deconvolution algorithm

Yuening Wang, Chengwen Guo, Yuxin Wang, Jie Yuan, Qian Cheng

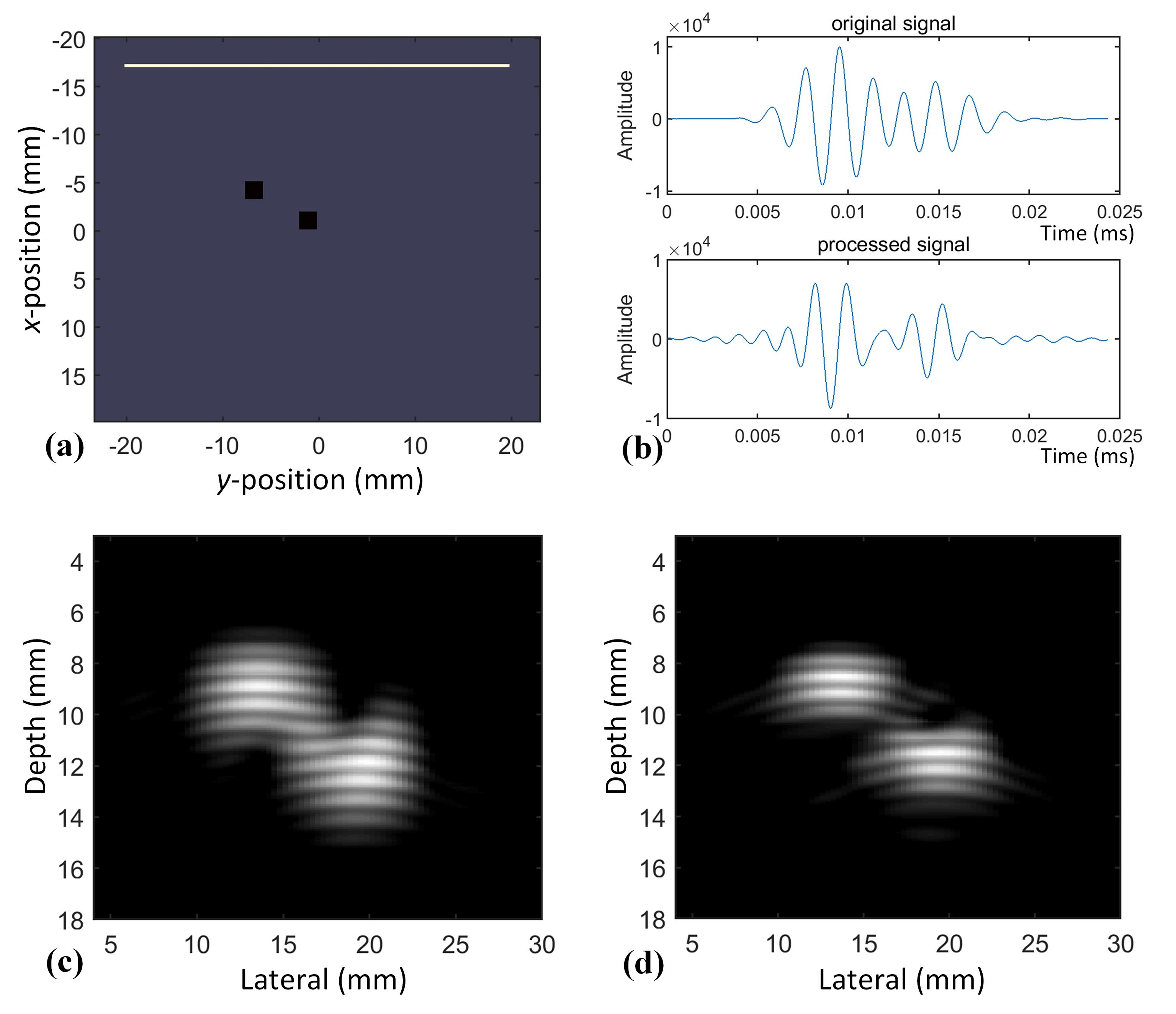

图2 超声仿真模型的信号处理和图像重建结果对比：(a)成像目标与传感器的位置设定；(b)信号处理过程； (c)原始信号重建出的图像；(d)反卷积后的信号重建出的图像

Fig.2 The comparison of signal processing and image reconstruction in ultrasonic simulation：(a) the position setting of the imaging target and the sensor，(b) the signal processing process，(c) the image reconstructed from the original signal，(d) the image reconstructed from the deconvolution signal
